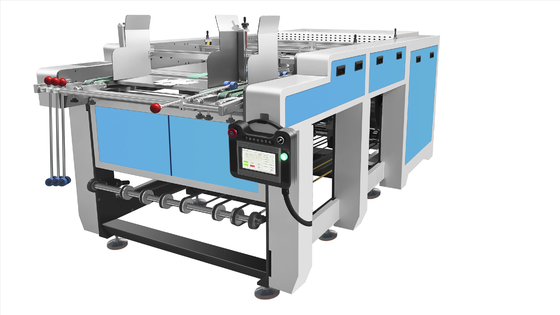

10-40m/Min Automatic V Grooving Machine Rigid Box Die Cutting Machine For Cardboard

10-40m/Min Automatic V Grooving Machine Rigid Box Die Cutting Machine For Cardboard

Brand Name:	KINGPACK MACHINERY
Model Number:	DG-960GS
MOQ:	1SET
Price:	105000
Supply Ability:	10SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Packaging Details:

WOODEN BOX 3250*1550*1500MM

Highlight:

40m/Min Automatic V Grooving Machine

10m/Min Automatic V Grooving Machine

Box Die Cutting Machine For Cardboard

Product Description

10-40m/Min Automatic V Grooving Machine Rigid Box Die Cutting Machine For Cardboard

Product Overview

This programming die cutting and grooving machine is widely used for die cutting and V-type grooving on various hardcovers and rigid boxes. It is suitable for processing grey board and wooden board (MDF).

Key Features

Automatic correcting structure for easy material changes with no adjustment needed on material conveyance
Innovative V-slotting design prevents damage from waggling
Automatic waste and product collection system for easy separation
High-precision bearings ensure quiet operation with no roller partiality
Production speed of 10-40m/min for efficient processing

Technical Specifications

Model	DG-960GS	DG-1100GS
Cardboard Size (L x W x T)	150-600mm x 150-960mm x 0.5-4mm	150-600mm x 150-1100mm x 0.5-4mm
Production Speed	10-40m/min	10-40m/min
Creasing Size	20mm-350mm	20mm-350mm
Voltage/Power	AC 380V/50Hz/6.5kw	AC 380V/50Hz/7.5kw
Grooving Angle	80-140°	80-140°
Number of Cutter Holders	8 sets	10 sets
Machine Dimension (L x W x H)	3150mm x 1450mm x 1450mm	3150mm x 1750mm x 1450mm
Machine Weight	1700Kg	2100Kg
