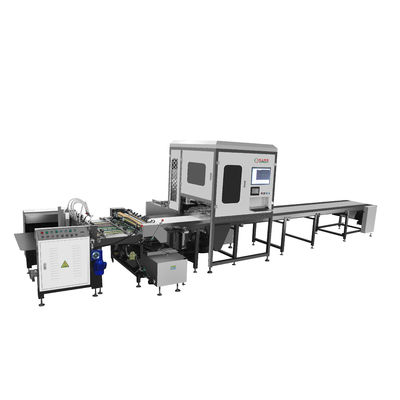

High-Precision Dual Heads Vision Positioning Machine ±0.05mm Accuracy for Luxury Rigid Box & Hardcover Production

Introduction

This equipment is wide used in paper sheets feeding, gluing and positioning for various rigid boxes and gift boxes, such as jewelry box, cellphone box, wine box, cake box and cigarette box etc.

Instruction

1. Feeder part adopts the specialized Cam structure, to avoid the double sheets or more sheets.

2. Gluing part adopts the circulatory gluing system, and high precision gluing rollers to ensure gluing well-proportioned.

3. Positioned unit adopts high-resolution industrial camera to calculate the position of paper sheet and positioning through robot which support ±0.2mm accuracy.

This machine accepts to combine the extra rigid box making machines which can output automatically.

High-Precision Dual Heads Vision Positioning Machine for Premium Rigid Box Production

Introduction: Revolutionizing the Luxury Packaging Workflow

The Dual Heads Vision Positioning Machine is an industry-leading solution designed for high-end packaging manufacturers. This sophisticated equipment is widely utilized in the automated feeding, precise gluing, and intelligent positioning of paper sheets for an extensive range of premium rigid boxes. Whether you are producing luxury jewelry boxes, high-tech cellphone packaging, premium wine cases, artisanal cake boxes, or specialty cigarette boxes, this machine provides the technical foundation for "zero-defect" manufacturing. Its ability to handle diverse materials—from standard art paper to specialty textured stocks—makes it an indispensable asset for modern smart factories.

Core Technical Advantages & Features

1. Intelligent Feeding with Specialized Cam Mechanism

Precision starts at the beginning of the line. The feeder unit incorporates a specialized mechanical Cam structure, which is engineered to synchronize perfectly with high-speed production cycles. This design effectively eliminates the common industry pain point of "double-sheet feeding" or multi-sheet overlaps. By ensuring a consistent, single-sheet flow, the machine minimizes material waste and prevents downstream mechanical jams, significantly increasing the overall Equipment Effectiveness (OEE).

2. Uniform Circulatory Gluing System

Consistency is key in luxury packaging. Our gluing unit utilizes a circulatory adhesive management system paired with high-precision micro-adjustment rollers. This ensures that every sheet receives a perfectly well-proportioned glue film. The system supports both hot-melt and cold-glue applications, maintaining the ideal viscosity and temperature to prevent bubbling or warping, which is critical for maintaining the structural integrity of rigid gift boxes.

3. Advanced Dual Heads Vision Positioning & Robotic Accuracy

The defining feature of this equipment is the Dual Heads Vision Positioning Machine technology. By employing high-resolution industrial CCD cameras (5.0 megapixels or higher), the system captures real-time data to calculate the exact coordinates of the paper sheet. This data is instantly transmitted to a high-speed robotic arm, which executes positioning with a remarkable accuracy of ±0.2mm. This vision-guided robotics system compensates for any mechanical deviations, ensuring that the box board and cover paper are aligned with surgical precision—a standard required by global luxury brands.

Seamless Integration & Scalability

Beyond standalone operation, this machine is designed with modular compatibility. It can be seamlessly integrated with extra rigid box making machines or wrapping units to create a fully autonomous production line. From raw paper feeding to the final formed box, the entire process can be automated to reduce labor costs by up to 70% while doubling your daily output capacity.

Packaging & Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance transportation and various types of weather conditions.

Our Services

We provide 7*24 hours online or technician in installation and training. We provide spare parts rapidly as air express.

Company Information

The Kingpack Machinery Group is a professional manufacturer in design, production and maintenance of equipment solutions for paper packaging product such as Paper Boxes, Hard covers, Paper handles. We offer more than thousands of customers worldwide through our brands: Kingpack Machinery, XJ Machinery and Donggong Machinery. After decades cumulative experience, the equipment we provide is more sophisticated and durable, whether control system or structures.

A vision of future of Kingpack Machinery is to be technical solutions provider in Paper Packaging products.

RFQ

Q1: Are you a manufacturer or a trading company?

A: We have our own factory in Dongguan, Guangdong Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to customer.

Q3. What is the production time while placing order?

A: Normally about 3-10 days.

Q4. What is the delivery time?

A: 10-20days after deposit.

Q5. Do your company deal shipping for customers?

A: Yes, A destination to us, we would ship worldwide.

Q6. Is the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Q7. How about the machine installation and training?

A: 1) We provide training in our factory for free;

2} we support technical training online through videos or various online tools;

3) We can send technicians (engineers) to your factory for installation and training. You shall pay the round-trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: We have stock for standard model. We need 10-20days for customized models.

Q9. How can you assure the machines’ quality?

A: We have the strictly quality control department, we must debug and test the machines, save and keep pictures and videos, and we have clear checklist for spare parts.

Q10. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q11. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q12. How many years are you in packaging field?

A: More than 14 years in paper bag and paper box machinery, from installation, drawing, design and export operations.

Q13. How many clients did you serve?

A:Our customers are around China local market and worldwide markets. We have agents in Turkey, South Africa, Brazil, India, Vietnam… …
