| Price: | $25,000/sets >=1 sets |

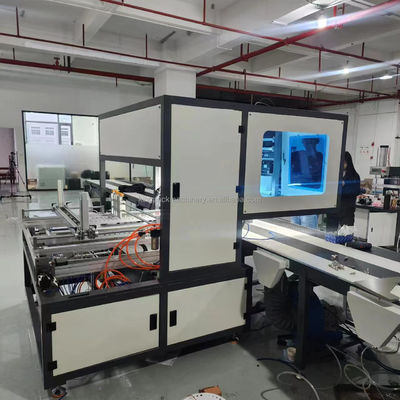

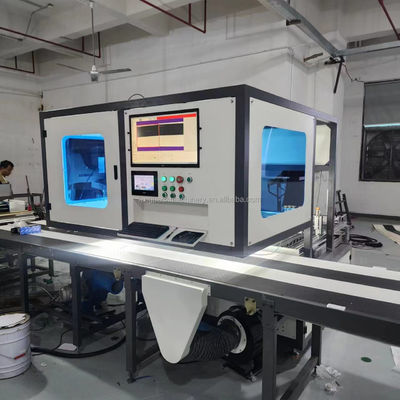

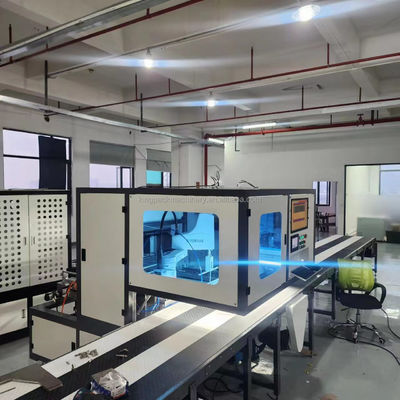

Advanced Technology Automatic Hardcover and Rigid Box Visual Positioning Machine for Jewelry Watch Cigarette Wine Giftbox
|
Box Size Single Positioning |
Length range | 45-500mm |
| Width range |
45-400mm |
|
| Height range | 12-120mm | |
|
Box Size Double Positioning |
Length range | 45-300mm |
| Width range | 45-190mm | |
| Height range | 12-120mm | |
| Cardboard Size | Length range | 50-900mm |
| Width range | 50-450mm | |
| Thickness range | 1-4mm | |
| Production Speed | 20-46 pcs/min | |
| Positioning Precision | ±0.1mm | |
| Voltage/Power | AC380V/50Hz/14KW | |
| Air pressure | 0.6-0.8MPa | |
| Machine size | 8000*3100*2100mm | |
| Machine weight | 1900KG | |
Rigid Box make Machine Automatic Hardcover and Rigid Box Visual Positioning Machine for Giftbox Watch Jewelry Wine Cigarette Box
7*24 hrs working
Response immediately
Inspection carefully before shipment
Technical support
Kingpack Machinery Co.,Ltd is specialized in design, produce, and offer solutions for paper packing product such as rigid box, hardcover, cigarette box, perfume box, jewellery box.
Kingpack series of box forming machine: V grooving machine, paste corner machine, feeding and gluing machine, rigid box forming machine, hardcover edges forming machine, manual casemaking machine, automatic hardcover and rigid box visual positioning machine, bubble pressing machine, manual grooving machine.
We commited to " customer first, service first", we would like to join hands with you to create a bright future.
Partial box our machine can produce as following
Q1: What is the primary advantage of using an Automatic Rigid Box Visual Positioning Machine?
The primary advantage is the replacement of manual alignment with high-speed industrial cameras and robotic precision. Our Rigid Box Visual Positioning Machine utilizes a CCD camera system to achieve a positioning accuracy of up to $pm0.05text{mm}$. This eliminates human error, significantly reduces waste in premium packaging production (like jewelry and watch boxes), and allows for consistent high-speed output that manual labor cannot match.
Q2: Can this Rigid Box Visual Positioning Machine handle different types of paper and cardboard?
Yes. The system is designed for versatility. It can process a wide range of materials, including specialty textured paper, gloss-coated paper, and various thicknesses of grayboard. The advanced image recognition software within the Rigid Box Visual Positioning Machine is capable of identifying edges and patterns on complex surfaces, making it ideal for the diverse aesthetic requirements of high-end cigarette and cosmetic gift boxes.
Q3: How does the visual positioning system improve production efficiency for watch and cigarette boxes?

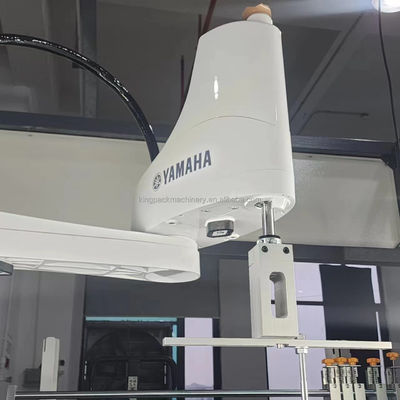

In the production of watch and cigarette boxes, precision is paramount for structural integrity. The Rigid Box Visual Positioning Machine synchronizes the glue application, paper feeding, and box spotter in a single automated loop. By using a SCARA robotic arm for picking and placing, the machine achieves speeds of 25–35 pieces per minute. This automation reduces the "bottleneck" at the assembly stage, allowing manufacturers to meet tight deadlines for luxury brand clients.
Q4: Is it difficult to switch between different box sizes on this machine?

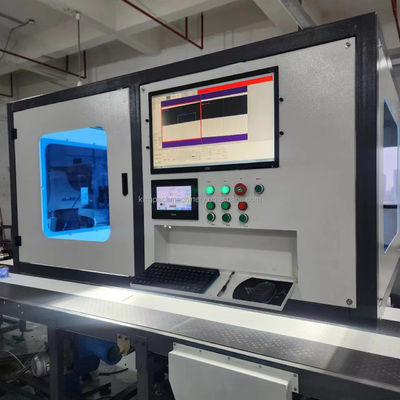

Not at all. Our Rigid Box Visual Positioning Machine features a user-friendly HMI (Human-Machine Interface). Operators can quickly input new dimensions and adjust the visual parameters through the digital control panel. This rapid changeover capability is essential for "boutique" production runs where different sizes of hardcover boxes are produced in the same shift.
Q5: What maintenance is required for the CCD cameras in the positioning system?
The visual sensors in the Rigid Box Visual Positioning Machine are industrial-grade and require minimal maintenance. Periodically cleaning the camera lenses and ensuring the LED lighting environment remains consistent is usually sufficient. The software also includes self-diagnostic tools to alert operators if the positioning accuracy drifts outside of the calibrated parameters.
