10-25pcs/Min Rigid Box Forming Machine Gift Box Making Machine DG500H 600H 800H

10-25pcs/Min Rigid Box Forming Machine Gift Box Making Machine DG500H 600H 800H

Brand Name:	KINGPACK MACHINERY
Model Number:	DG-500H
MOQ:	1SET
Price:	52000
Payment Terms:	T/T,Western Union
Supply Ability:	20SETS MONTHLY

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Highlight:

25pcs/Min Rigid Box Forming Machine

10pcs/Min Rigid Box Forming Machine

Gift Box Making Machine DG500H

Product Description

10-25pcs/Min Rigid Box Forming Machine Gift Box Making Machine DG500H 600H 800H

INSTRUCTION

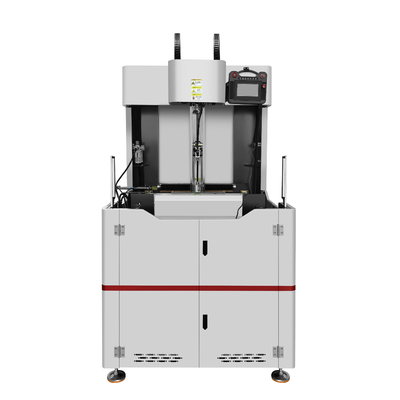

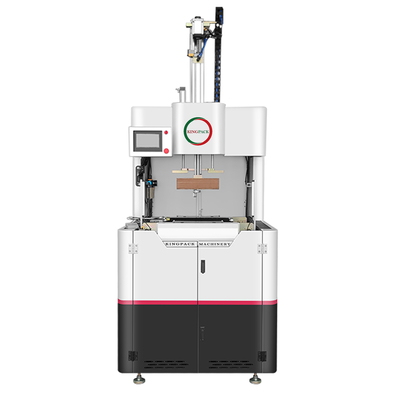

This machine is the main model for rigid box production, used to fold, bubble press, and finish boxes. After gluing and positioning by hand or robot, the product is placed in this machine for forming and folding the tips into the box while pressing simultaneously through each part, resulting in a box with a nice appearance. It is the standard box forming machine for rigid box production when customers have quantity and quality requirements.

PRODUCT PARAMETERS

Model	DG-500H	DG-600H
Rigid Box Size	L45-480mm W45-380mm H12-120mm	L45-600mm W45-400mm H12-120mm
Output speed	10-25pcs/min	10-25pcs/min
Machine Voltage/Power	AC220V/50Hz/2.5kw	AC220V/50Hz/2.5kw
Air Pressure	0.6-0.8MPa	0.6-0.8MPa
Machine Dimension	L1200mm×W1100mm×H2200mm	L1300mm×W1200mm×H2200mm
Machine Weight	900Kg	1100Kg

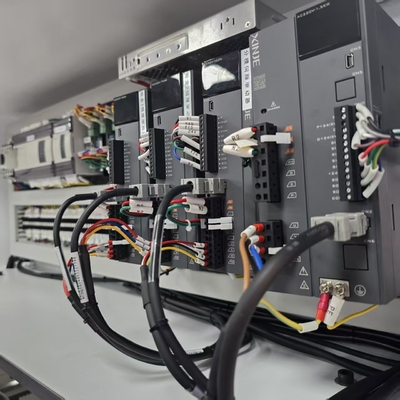

CONFIGURATION

NAME	BRAND
TOUCH SCREEN	XINJIE
SERVO MOTOR	XINJIE
STEP MOTOR	LEISHINE
PLC	XINJIE
RELAY	CHNT
POWER BANK	MW
DETECTOR	HD
E-MAGNETIC SENSOR	HD
VALUE	AIRTAC
VACUUM VALUE	AMC
AIR CLINDER	AIRTAC
