Manual Box Making Machine
Created with Pixso.

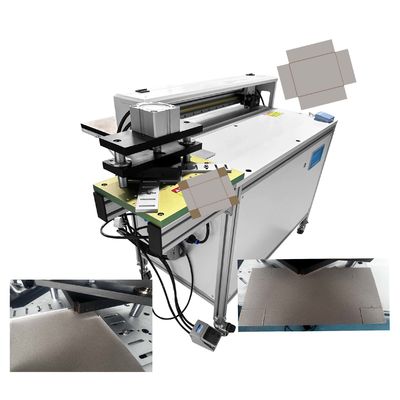

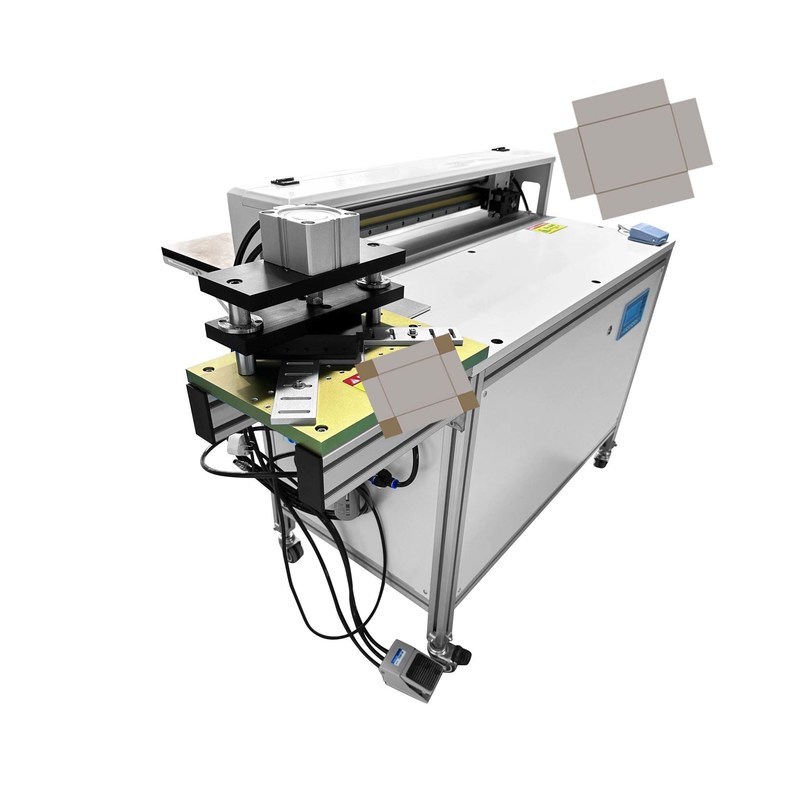

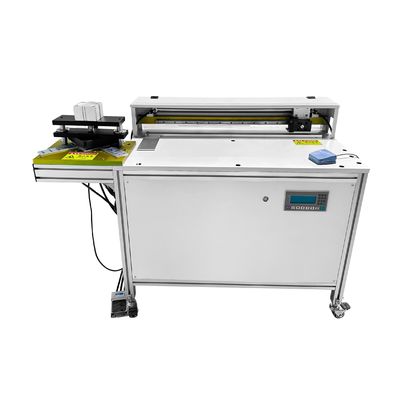

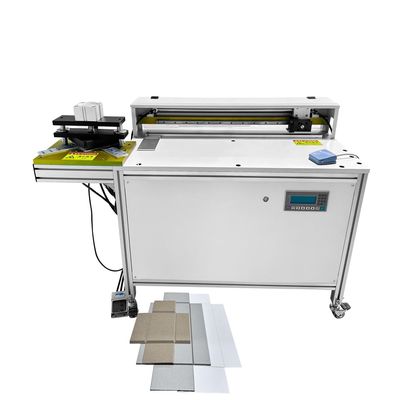

Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making

Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making

Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making

Brand Name: Kingpack
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Voltage:
220V
Dimension:
1200*550*950mm
Weight:
125KG
Grooving Width:
0-700MM
Grooving Height:
0-380MM
Grooving Angle:
85-135°
Grooving Thickness:
250GRAMS-5MM
Air Pressure:
0.6-0.8MPA
Power:
5W
Machine Dimension:
142*85*120CM
Automatic Grade:
Semi-Automatic
Core Components:
Engine, Gearbox, Bearing, Motor, Pump, Gear
Model:
7010VP Pneumatic V Grooving Machine
Usage:
Paper Forming Machine
Machine Weight:
125KG
Highlight:

220V V Grooving Machine

,

125KG Die Cutting Machine

,

Programmable Pneumatic V Grooving Machine

Product Description
Semi-auto Pneumatic V Grooving Machine Die Cutting with Grayboard Slotting Machine for Sample Box Production
Pneumatic V Grooving Machine

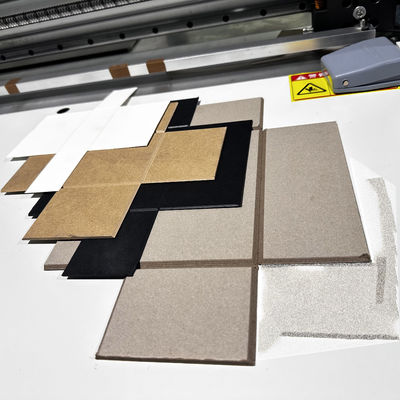

The Pneumatic V grooving machine is widely used for sample making of hardcover and rigid boxes. It features integrated die-cutting and grooving capabilities, enabling efficient sample production in a single operation. With programmable controls, the machine allows adjustment of motion timing to accommodate different sizes, optimizing workflow efficiency. Suitable for both sample production and small batch runs, this machine offers an economical solution for businesses with limited budgets.
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 0
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 1
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 2
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 3
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 4
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 5

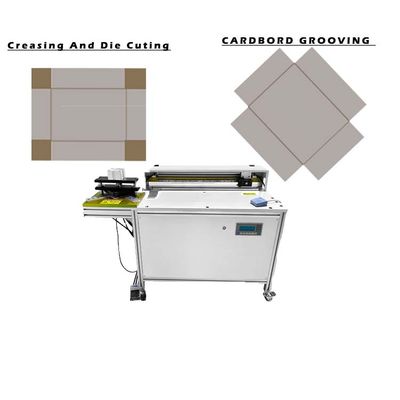

Box Production Process
The standard process involves first die-cutting the cardboard, followed by precision slotting to create the box structure.
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 6
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 7
Product Applications
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 8
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 9
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 10
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 11
Technical Specifications
Model 7010VP Pneumatic V Grooving Machine
Grooving Width 0-700mm
Grooving Height 0-380mm
Grooving Angle 85-135°
Grooving Thickness 250grams-5mm
Air Pressure 0.6-0.8MPa
Voltage 220V/5W
Machine Dimensions 142×85×120cm
Machine Weight 125kg
Quality Assurance
Each machine undergoes rigorous testing and sample production before dispatch to ensure optimal performance. Our monthly production planning ensures prompt order fulfillment, with same-day dispatch available for urgent orders.
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 12
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 13
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 14
Customization Services
With in-house design and manufacturing capabilities, we can accommodate custom requirements. Our team provides same-day design concepts and rapid prototyping to meet specific customer needs.
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 15
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 16
About Kingpack Machinery
Kingpack Machinery Group is a professional manufacturer specializing in design, production, and maintenance of equipment solutions for paper packaging products including paper boxes, hard covers, and paper handles. With decades of cumulative experience, our equipment offers sophisticated and durable performance in both control systems and mechanical structures. Our vision is to be the leading technical solutions provider in the paper packaging industry.
Phone: WhatsApp Mr. Bruce Lee +86183 1234 2985 / +86 132 6613 1182
Email: Bruce@dgkingpack.com / Bruce@kingpackmachinery.com
Address: 101# Building 3 Songgang Industrial Area, Huaide Management, Humen Town, Dongguan City 523000, Guangdong PR. China
Website: www.kingpackmachinery.com; www.kingpack-machinery.com; www.dgkingpack.com
Company Equipment Showcase
Semi-Automatic Pneumatic V Grooving Machine 220V Programmable for Sample Box Making 17
